![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgv-symhfTICeMiytVPwiXltTsmICPmv_KzUGczyhhpJOeGZO0BDpSPauL34yMU1V9DlPlrUPHQDvR8XYQTdzyQg-b99S_Aayq8dbEftooV1YrpKuLK7eGZbx5x2zuBHRYOibaS5eR0VtQ/s320/azure_upgrade1.jpg)
Here's the back end of the transmission/motor. Based on a suggestion from another 914 AC customer, I purchased some long 8mm bolts to lower the transmission end about 8 inches and still keep it stable. Note the long silver rods (8mm bolts) in the diagram above. I used one floor jack to lower the back end of the tranny. I had to remove the speedo cable, the accelerator cable, the clutch cable and the shift linkage to do this (argh!).
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiyUi3wnMxhnHGGu3asSIJRcr5v-zzj72gBysbT_yTOcyaf2xiteHb5vbU0Qmcs9DWy_-1wvvEvywT01MQ1UCjdUEefl0r42Fan18lZMuz-oJWeU_PTGaNk5H4Bq4fZpDtJ03k9SK0JQD8/s320/azure_upgrade2.jpg)
I used the second floor jack to lower the front end of the motor assembly so that the 12" long motor bolts could actually slide out of the AC 24 motor.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEie1rYTbbLmCa2C3qGJD5A3R9w9WLxKh8hUkKRjTHjnKOVWE71GR06miPlpVH5E04JnSjEzHjK-FWkenrng0FQq6_TO5N_YVRoWvRlQZEoY5yyRrHpIZP9awht4NDHjPbBwVqiAPqY9dgk/s320/azure_upgrade3.jpg)
Here's the end of the AC24 motor lowered so that I could extract the long bolts. Notice that I've already removed one in the upper right position on the round endcap.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgf0mOQ1ZTqy3TKW1mSj742RVjO3SDQEDdTZC6tJijMD7pgAyGQc0As7nI3qmNAwkfI3L2uA5RU4OpRCjMT_jfSVW9UIf4fIJQd-8zJgQPmuHMj29fbaRTmydxRFf-bnXVAjxmRVjBl_wM/s320/azure_upgrade4.jpg)

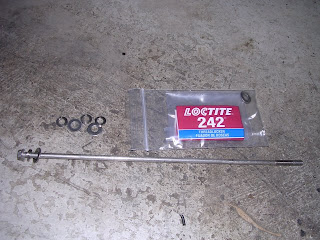

Here are the pieces for the upgrade kit above one of the motor bolts. In short, a lock washer and flat washer replace the nylon ones that came with the kit. Loctite further holds the bolt in place.
While this was a real pain. I'm glad this is taken care of so I don't have to worry about it.
Tomorrow (hopefully): connecting the motor to the controller and possibly starting on connecting the batteries with high-current cable.
