![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjc8e4lxP-JU9lH2P_jcIpdx-sntUIj5GR27sJtL81XhMdvTWL4zIoiydkTw4GomlutZrjI3dMkyfbVWu7aJUKlwX0XeLc0cEDzpe_1C4_JNzaWw6bNYWlQXHmBx4c1yX_INXfCZRzwJ_s/s320/cvjoint_ready.jpg)
Here's a dangling CV joing (minus the protective bag) ready for bolting back into the transmission. I packed the joint with grease for lubrication and painted a CV joint gasket with grease to seal the joint.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEipc8N4uNODZcyBr3RZDRuqQv1lv58IkUAvi1fH_nQn_iM05EoB_thR2HVDkwncIJTusqOBXSZFbisuz_SWeqwP8HA_Gr8NWTHGyVV900rgSedIvZhvjxUV3x3FoQJDIowKCduWQA_hk4k/s320/torquing_cvjoint.jpg)
Here we are, torquing down the CV joint bolts with the special 12-point tool I borrowed from Craig at Camp914 and my father's torque wrench.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg-4G1YDurDVagYyBY8Dj5-dWoiDJJEDRKyBUEC0xn4nrpyH9EPzOacLok6RWHJSGo0g6wvYmF7Dd-yuvqcl8wjSEkJsUSEqCjwlZrMTGcNuhlnDeK3JgIIympB3IMtV1es7-aiuT8pbQU/s320/shift_cover.jpg)

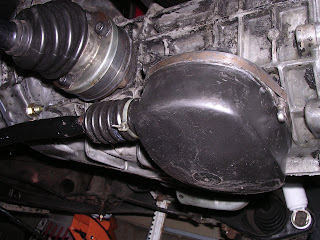

After installing the CV joints, I installed the shift linkage and cover. I'm hoping things will be much tighter since I replaced many of the ball sockets. Thanks to my neighbor for helping hold the shift lever while I twisted the shift linkage on.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEixSTM8zPrVCtaE_BxqR7N6Li-qxig0i5Oc_em3Sv7ZQzPftr6LUz84Y3vAjSJC2Lyt3HAoimzF7KRSDlKFxohZX1pmbCOoMbtbLIzfov81C8JtD0I0LNOIBxPgKhHxMvfcpwueTCsY7go/s320/cables_attached.jpg)
Here's the final undercarriage which is much more sparse without the gasoline engine. The speedo cable and clutch cable are attached and ready to go.
Next up: tie-wrapping things together, fixing the bolts on the electric motor mount and starting the wiring. This will hopefully be much less messy than wrangling the transmission.
