![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg0C43BMyf00CFGK3SwgFN4AFvYgZr8w_sAISD-lK5LY8JjNSM4_PHQE6tvfo99tWembl0JD5dTAi6fCqWL2NDIlJkZydCVqjhdSfCQUZr8P75M6ofSc8sovu1l5sWLaop-AD5OlSJ0KYQ/s320/new_bearings.jpg)
Here are the two replacement bearings from Pelican Parts ($400!) that I pushed into the transmission intermediate plate after heating it up with the orange heat gun to the left.
They went in surprisingly easy.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjWx0bO_IO-EskL0en3dkZ3HWRUka22kos8VcYyAX3cW2Xe9jeHxlksPKClgBowSOerpGwoD2CDjh7KgOhWJ1pgUoRnlkb2QWYiO7cKnZ56by-eMwAAbBJYbstaaFFUN5MjygUTWndpGDI/s320/new_synchros.jpg)

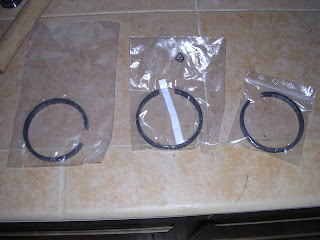

Here are the new synchro rings to fix the grinding 1st/2nd gears. They are $65 apiece and have a special molybdenum coating for proper friction during shifting.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgEk7v396X4-JX26ntMJY-APxfEc0ywKnE6V0PxJ6Yf3ntidW7Xp9-jAiQUkb0NmkucWhFQjOhhSI9sb2Cyt5Gqfzw8V7iMl588PSxA-Y1ypPHBZaZ4nPeTuVBlx0VXAqcc9envfZ2FI64/s320/replacing_synchro.jpg)
I removed the snap rings from 1st, 2nd and 3rd gear to replace the synchro rings.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh8cmDm5b7_draNBkO0AiQ7IfaBiilFKYEy2AC2Ah15Vt9AD-hQiL-BK6H9OzSSzdEEAls49Paol6HusiGMtbTiqLrANtdnkdWUMDEo6Df_Buod-JMKCBSY0C_sXsNpeEqXBE4KTPSXIQQ/s320/torquing_bearings.jpg)
Here we are torquing down the 12-point nuts that hold the bearing shield in place. This is the same 12-point tool that I used to remove the CV joints under the car.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjGV2ZCBsKPUhK6SdImg-in_dSS_7tU4UNUF3aUu9birP4AsIs0yypvm6m8WJ7wAX7kPhUuWBrcW8vZ-Q3SqnlEBjuf6bb2RVKV9yXU3GzOf0cJu80K9GDU32gCbQMzu3TgFRerQek9qms/s320/worn_synchro.jpg)
Here is a badly worn 1st gear synchro ring. if you click on the picture and look at the cross-section on the left, you'll see the bottom edge very worn down. No wonder 1st and 2nd gear were grinding!
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjE2T8sUbMMwtc6KAuW6TgRdBCKnVKR0gU3MewLsVHLYBGka2-TEXXXWEphGzxcDdKryoLTW8CuGHmWi70vuupQuNHwKajaB90D9gj7A4tx3QuJp0Ijg6BD9KLnJ_V0XuAtWImYpkf5VPE/s320/tranny_gears.jpg)
Here are the two transmission shafts inserted into the intermediate plate. There were too many parts to hold, so I had to wait for my friend Rick to come over (while on a date, no less) and hold this assembly together while I hammered on the inner race pieces for the shaft bearings.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhe5L_JL-PIOA0TjVgTHc2SllYLjNGhEDeLqdnD0368-B6RXDsE3zk7IXQZhCuDsZVdNDKDcrhTslmgifTL8opwn44iRKG9e_flj0hyphenhyphenmZLSvddhPNUraTZEYgsx3xgo5Ch_yZvRXxvKxEA/s320/assembled_shift_rods.jpg)

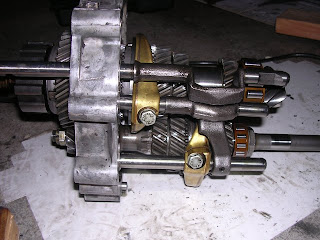

Here is the gear assembly with all shafts, shifting rods and gears in place.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhR3exZUftSycxjJdxIB8JZvKl-hULrDj2T1dOxqx1GIDxoM25bfPrrCgTOhkR5iato-ig14xATpLomxYn3hfv1q0-MuQUHMDk3uDz0LPRqQgG96l6ssOnNaWWJNNbthvlhXLZyiXLSba8/s320/tranny_parts.jpg)
I'm almost ready to put these two pieces back together; however, there are still old gaskets on the transmission edges and I have to scrape those off first.
